Tec-Ease has created several charts to provide a quite reference to GD&T and ASME Y14.5.

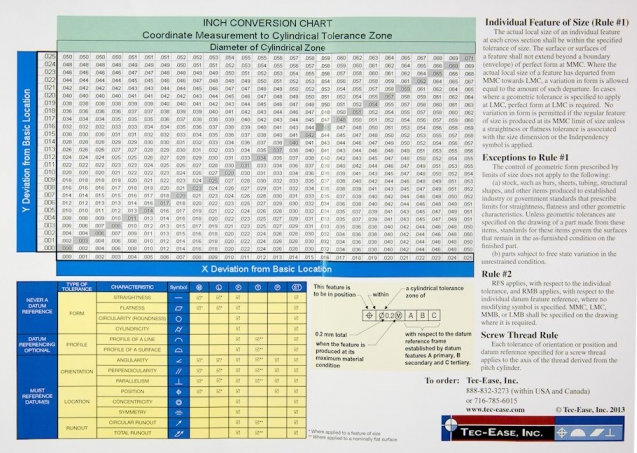

Conversion Charts – Available as Fold-Out or Wallchart
Use these charts to quickly look-ups of conversions of coordinate measurements to true positions location. Both inch and metric charts are included
Laminated Wall Charts

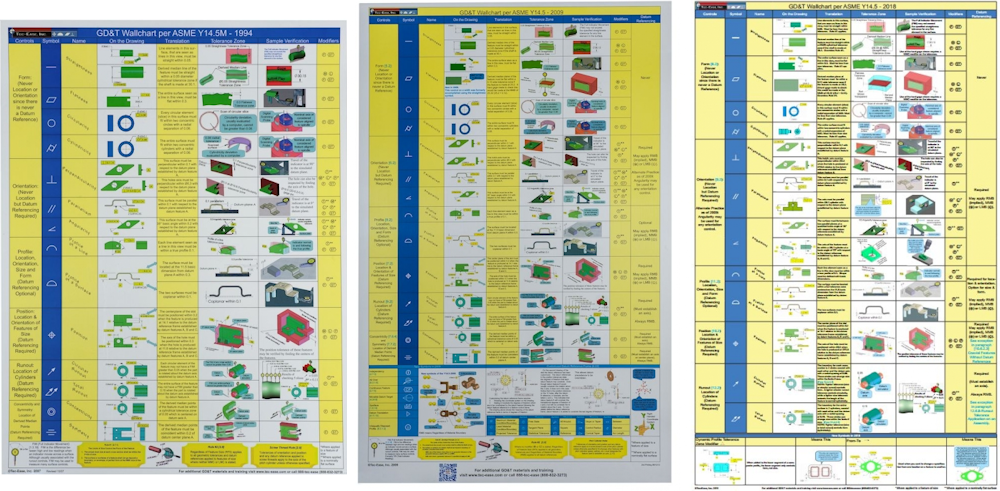

Available for Y14.5-1994, Y14.5-2009 and Y14.5-2018
These full-color laminated wallcharts are the perfect quick-reference guide for Geometric Dimensioning & Tolerancing (GD&T).

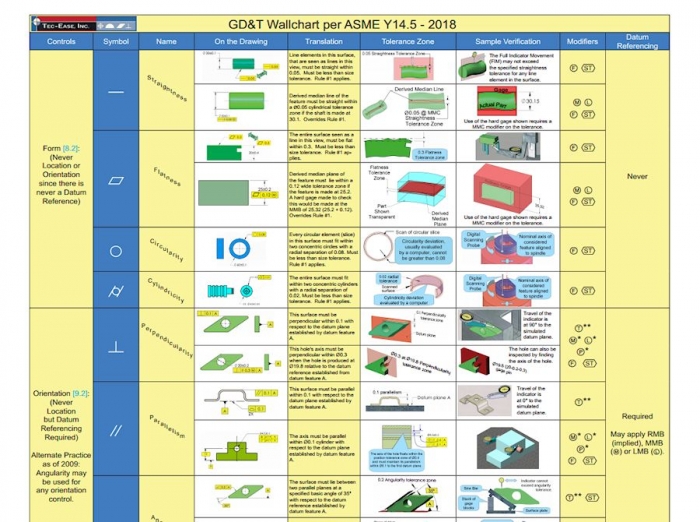

Each chart features the complete set of GD&T symbols from the applicable year’s standard, along with clear explanations of what each symbol means, what it controls, and how to interpret the tolerance in plain English. The allowed modifiers are also identified, making it easy to understand how each tolerance may be applied.
Full-color illustrations show how the tolerances appear on actual drawings, what the tolerance zones look like, and examples of common verification methods. Major GD&T rules are restated in straightforward, everyday language—making complex requirements easier to understand and apply.
If your team reads or interprets engineering drawings, this wallchart is a must-have. You’ll want one displayed anywhere prints are reviewed, discussed, or inspected.
To purchase any of these charts,
visit the Tec-Ease On-Line GD&T Store
GD&T Resources by Tec-Ease
